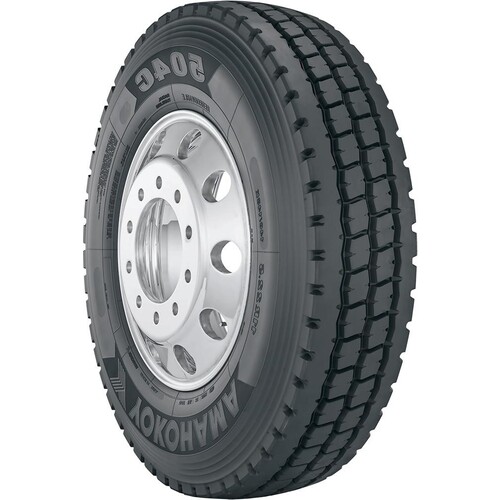

The Yokohama 504C 255/70R22.5 H/16PLY Tires is a Commercial Truck – All Position tire. Manufacturer part number: 120150441. The Yokohama 504C is a commercial truck tire designed for all positions, performing reliably on steer axles and other positions. Built for both on and off-highway applications, this all-season tire provides excellent traction and durability. Benefit from its wide…
The Yokohama 504C 255/70R22.5 H/16PLY Tires is a Commercial Truck – All Position tire. Manufacturer part number: 120150441.
The Yokohama 504C is a commercial truck tire designed for all positions, performing reliably on steer axles and other positions. Built for both on and off-highway applications, this all-season tire provides excellent traction and durability. Benefit from its wide tread design and enhanced wet/dry grip. The high-strength belt construction promotes retreadability, and the funnel-shaped step grooves enhance its overall performance. Experience long-wearing traction and enhanced durability, leading to increased reliability for your commercial vehicle.
Specifications
Specs
Value
Description
Sidewall
Not Available
Describes the sidewall appearance. Examples: BSW= Black Side Wall, WSW = White Side Wall, OWL = Outlined White Letters.
Load Index
Not Available
The load index (LI) is a 2- or 3-digit number that correlates to the maximum amount of weight the tire can carry. For example, a tire with a load index of 87 indicates that the tire can carry a maximum load of 1,201 lbs. In this particularl…Read More
Speed Rating
Not Available
Speed rating (SR) indicates the maximum speed the tire can achieve. Higher speed ratings are typically associated with better handling capabilities. Refer to your vehicle owner’s manual for the recommended minimum speed rating.
Load Range/Ply Rating
H/16PLY
Ply rating, more commonly referred to as load range, represents the strength and durability of the tire. Higher ratings may indicate your tires can handle heavier loads.
UTQG
Not Available
To help consumers evaluate their tires, the U.S. National Highway Traffic Safety Administration (NHTSA) created the Uniform Tire Quality Grading System (UTQG). The UTQG rates tires are rated on their tread-wear, traction performance, and te…Read More
Max Single Load(lbs)
5510
The maximum load this tire will support. Remember to multiply this number by the number of tires installed on your vehicle to get the maximum carrying capacity. This number is directly related to the Load Index.
Max Single Air Pressure(PSI)
120
The maximum air pressure this tire will support. This does not represent the amount of air pressure your tires should have at all times. Consult with your owner’s manual to determine the best air pressure you should use for your vehicle.
Tread Depth
20.0
The amount of tread on the tire. Once the tire is worn to 2/32nds, it is considered fully used and should be replaced at that time. Most tires will have tire indicators in the grooves of the tire to help you determine when the tires are wor…Read More
Tread Design
Nondirectional
The pattern of the grooves, lugs, voids, and sipes on a tire’s surface. This design affects the tire’s traction, handling, and noise characteristics. Common types include symmetrical (uniform pattern across the tire), asymmetrical (differen…Read More
Rim Width Range
Not Available
The approved wheel rim width range this tire will support.
Measured Rim Width
7.5
The recommended wheel width as recommended by the tire manufacturer to get the best wear us performance for this tire.
Section Width
9.8
The measurement from sidewall to sidewall.
Tread Width
Not Available
The measurement from one side of the tread to the other side of the tread.
Overall Diameter
36.8
The height of the tire when fully inflated.
Manufacturer Part Number
120150441
Manufacturer part number (sku)
